Self-Locking Nylon Cable Ties

Catalog Download

Technical Parameters

Name
Self-locking Nylon cable ties
Working temperature
Applied from -45℃ to 85℃
Features
1.Made by UL Recognized Material
2.Brand New and High Quality
3.Self-Locking, high capacity
4.With acid-resistant, corrosion-resistant feature
Materials
Nylon 66(UL approved material)
Color
White/Black, can also be customized according to customer needs.
Structure
Self locking head
Package
General package : 100pcs/bag, can also be customized according to customer requirements packaging size.
Self-Locking Nylon Cable Ties
Self-Locking Nylon Cable Ties Self-Locking Nylon Cable Ties

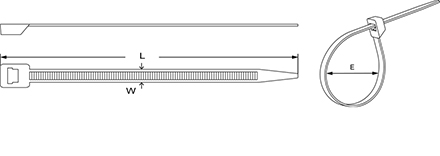

Decomposition Diagrams

Technical Data sheet



ITEM.NO.

L



W

(mm)



E(mm)

Bundle diameter

Min.loop

 Tensile Strength



Packing

INCH

MM

LBS

KGS

PJ-2.5 x 80

3.2''

80









2.5

2-16









18









8





















1000pcs/bag

PJ-2.5 x 100

4.0''

100

2-22

PJ-2.5 x 120

4.7''

120

2-30

PJ-2.5 x 150

6.0''

150

2-35

PJ-2.5 x 200

8.0''

200

2-50

PJ-3.6 x 150

6.0''

150













3.6

3-35













40













18

PJ-3.6 x 180

7.1''

180

3-42

PJ-3.6 x 200

8.0''

200

3-50

PJ-3.6 x 250

10''

250

3-65

PJ-3.6 x 280

11''

280

3-70

PJ-3.6 x 300

12''

300

3-80

PJ-3.6 x 370

14.6''

370

3-105

PJ-4.8 x 120

4.7''

120























4.8

3-30























50























22























500pcs/bag

PJ-4.8 x 160

6.3''

160

3-40

PJ-4.8 x 180

7.1''

180

3-42

PJ-4.8 x 200

8.0''

200

3-50

PJ-4.8 x 250

10''

250

3-65

PJ-4.8 x 280

11''

280

3-70

PJ-4.8 x 300

12''

300

3-80

PJ-4.8 x 350

14''

350

3-90

PJ-4.8 x 380

15''

380

3-102

PJ-4.8 x 400

16''

400

3-105

PJ-4.8 x 450

17.7''

450

3-130

PJ-4.8 x 500

19.7''

500

3-150

PJ-7.2 x 150

6.0''

150























7.2

3-35























120























55

















































100pcs/bag

PJ-7.2 x 200

8.0''

200

3-50

PJ-7.2 x 250

10''

250

4-65

PJ-7.2 x 280

11''

280

4-78

PJ-7.2 x 300

12''

300

4-80

PJ-7.2 x 350

14''

350

4-90

PJ-7.2 x 380

15''

380

4-100

PJ-7.2 x 400

16''

400

4-105

PJ-7.2 x 450

18''

450

4-110

PJ-7.2 x 500

20''

500

4-150

PJ-7.2 x 530

20.9''

530

4-160

PJ-7.2 x 550

21.6''

550

4-165

PJ-9.0 x 400

16''

400























9.0

8-105























175























79.4

PJ-9.0 x 450

18''

450

8-118

PJ-9.0 x 500

20''

500

8-150

PJ-9.0 x 550

21.6''

550

8-160

PJ-9.0 x 600

23.6''

600

8-170

PJ-9.0 x 650

25.6''

650

8-185

PJ-9.0 x 720

28.3''

720

10-195

PJ-9.0 x 800

31.5''

800

10-230

PJ-9.0 x 900

35.5''

900

10-265

PJ-9.0 x 1000

29.4''

1000

10-300

PJ-9.0 x 1100

43.3''

1100

10-335

PJ-9.0 x 1200

47.2''

1200

10-370

PJ-12 x 650

25.6''

650



12

14-185



250



114

PJ-12 x 900

25.5''

900

14-265
